THOR002 手持式熱像儀
商品編號產品資訊
產品特色
• 熱靈敏度<40MK
• 測溫範圍-20℃~550℃
• 防水防撞堅固耐用
產品特色
THOR002 是房屋檢修與水電工程的精密利器。憑藉SUPER IR 512×384 超解析度與 <40MK 高熱靈敏度，能精準捕捉牆面或地底微小的溫差，讓潛藏在結構中的滲水、管路堵塞或隔熱缺陷瞬間無所遁形。
設備支援影像融合技術，將熱影像與可見光結合，協助您快速定位漏水點並向客戶展示清晰對比。具備8小時長續航與 IP56 級堅固防護，無論是潮濕浴室或工地巡檢皆能從容應對，是提升抓漏專業度與結案效率的最佳儀器。

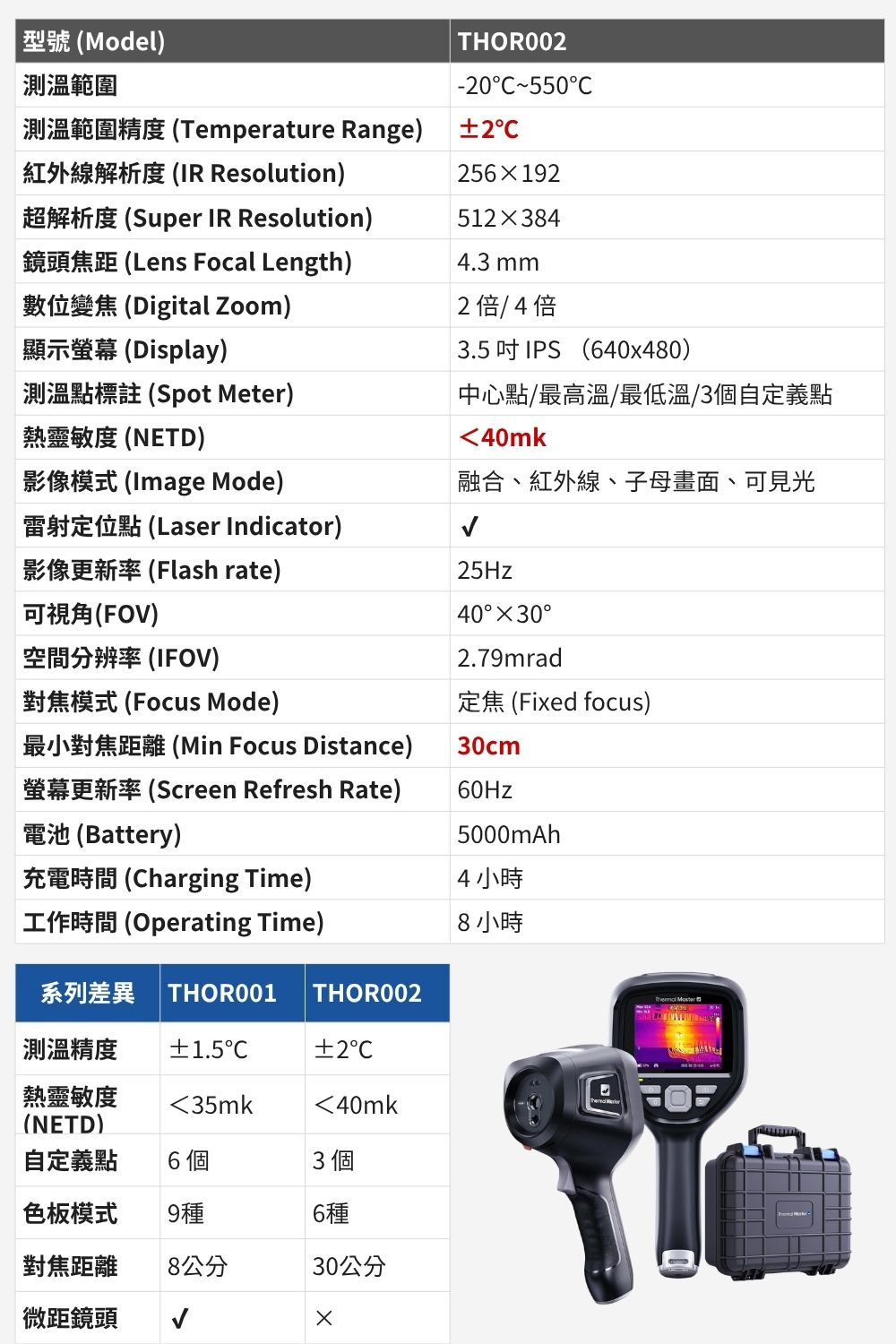

Model
THOR002
Temperature Range
±2℃ or ±2% of the reading
IR Resolution
256×192
Super IR Resolution
512×384
Macro Lens
×
Lens Focal Length
4.3mm
Digital Zoom
2/4×
Display
3.5 inch IPS（640x480）
Spot Meter
Center spot/Max/Min/3
Custom Spots/Temperature difference
NETD/Thermal Sensitivity
＜40mk
Image Mode
Fusion, IR（default), PIP, Visual
Digital Camera
2MP
Wireless
✔
PC-based Analysis Software
Supports 13 languages (English by default)
APP
Athermalized Prime Lens
Laser Indicator
✔
Microphone
✔
Flash Shield
Lens cap for protection
Alloy Metal Base
✔
TruePix
✔
Razor X
✔
Image Frequency
25Hz
FOV
40°×30°
IFOV
2.79mrad
Pixel Pitch
12μm
Focus Mode
Fixed focus
Min Focus Distance
30cm
Screen Refresh Rate
60Hz
Fast Charge
18W
Battery
5000mAh
Charging Time
4h
Operating Time
8h
